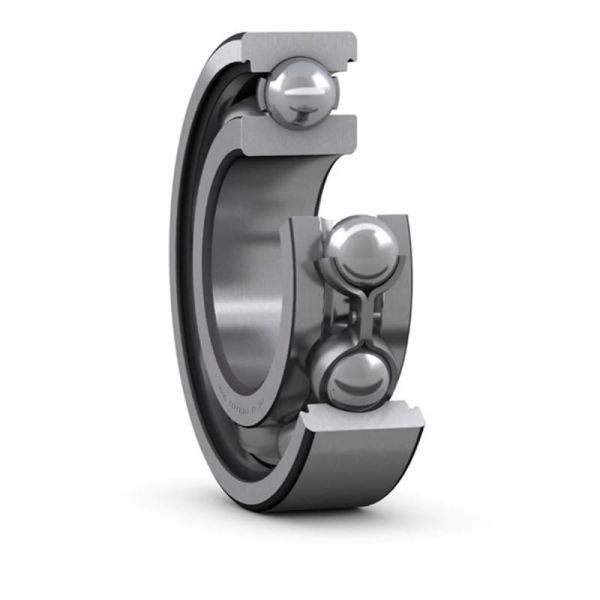

SKF Deep Groove Ball Bearing 6007 (35MM x 62MM x 14MM)

Brand
Part Number : 6007
MRP: ₹329.60 ₹279.32 Special Price 20% off ₹412.00
Features / Specifications
  • Bore diameter (d) : 35 mm
  • Outside diameter (D) : 62 mm
  • Width (B) : 14mm
  • Shoulder diameter(d1):43.75mm
  • Recess diameter(D2):55.61mm
  • Chamfer dimension(r1,2):min. 1mm
  • Reference speed: 24 000 r/min
  • Limiting speed: 15 000 r/min
  • Mass bearing: 0.15 kg
Get 2% Extra Discount[On Checkout]
Minimum Order Qty : 1

Tool Description

da
min. 39.6 mm
Diameter of shaft abutment
Da
max. 57.4 mm
Diameter of housing abutment
ra
max. 1 mm
Radius of shaft or housing fillet
Basic dynamic load ratingC
16.8 kN
Basic static load ratingC0
10.2 kN
Fatigue load limitPu
0.44 kN
Reference speed
24 000 r/min
Limiting speed
15 000 r/min
Minimum load factorkr
0.025
Calculation factorf0
15
Mass bearing
0.15 kg
