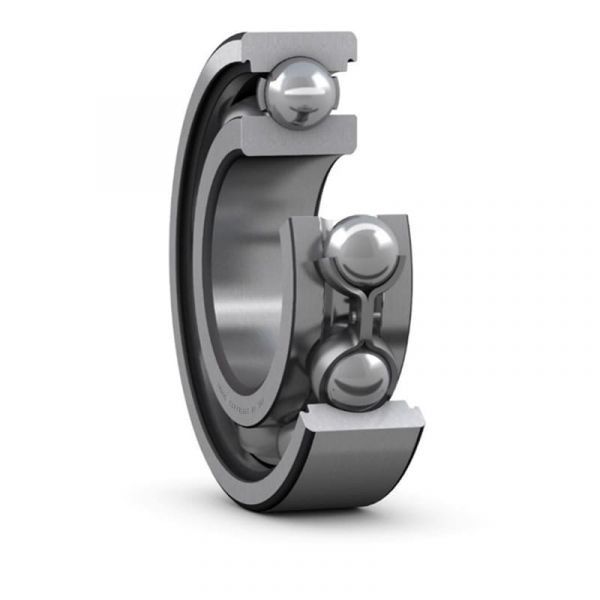

SKF Deep Groove Ball Bearing 6206 N (30MM x 62MM x 16MM)
In stock
Brand
Part Number : 6206 N
₹451.50
₹382.63
Special Price
₹602.00
Regular Price
Features / Specifications
- Bore diameter (d) : 30 mm
- Outside diameter (D) : 62 mm
- Width (B) : 16mm
- Shoulder diameter(d1):40.36mm
- Recess diameter(D2):54.06mm
- diameter of snap ring groove(D3):59.61mm
- Width of snap ring groove(b):1.9mm
- Distance outer ring from side face to snap ring groove(c):3.28mm
- Botton radius of snap ring groove(o):max 0.6mm
- Chamfer dimension(r1,2):min. 1mm
- Reference speed: 24 000 r/min
- Limiting speed: 15 000 r/min
- Mass bearing: 0.2 kg
