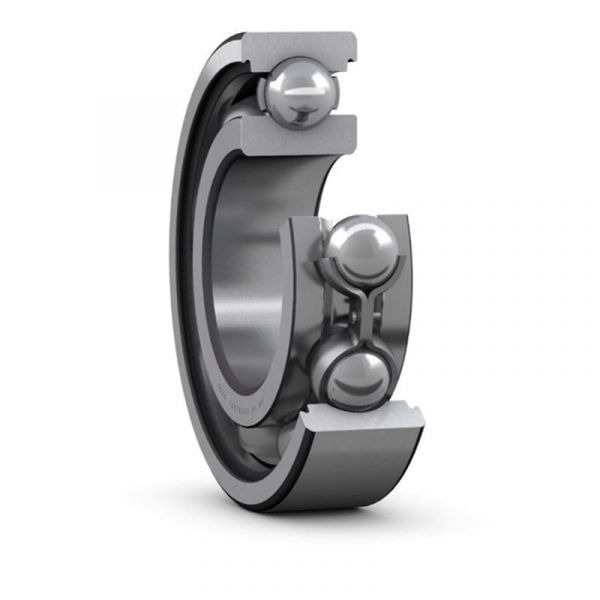

SKF Deep Groove Ball Bearing 6207 N (35MM x 72MM x 17MM)

By
₹477.00 ₹404.24
Features / Specifications
  • Bore diameter (d) : 35 mm
  • Outside diameter (D) : 72 mm
  • Width (B) : 17mm
  • Shoulder diameter(d1):46.94mm
  • Recess diameter(D2):62.69mm
  • diameter of snap ring groove(D3):68.81mm
  • Width of snap ring groove(b):1.9mm
  • Distance outer ring from side face to snap ring groove(c):3.28mm
  • Botton radius of snap ring groove(o):max 0.6mm
  • Chamfer dimension(r1,2):min. 1.1mm
  • Reference speed: 20 000 r/min
  • Limiting speed: 13000 r/min
  • Mass bearing: 0.28 kg
