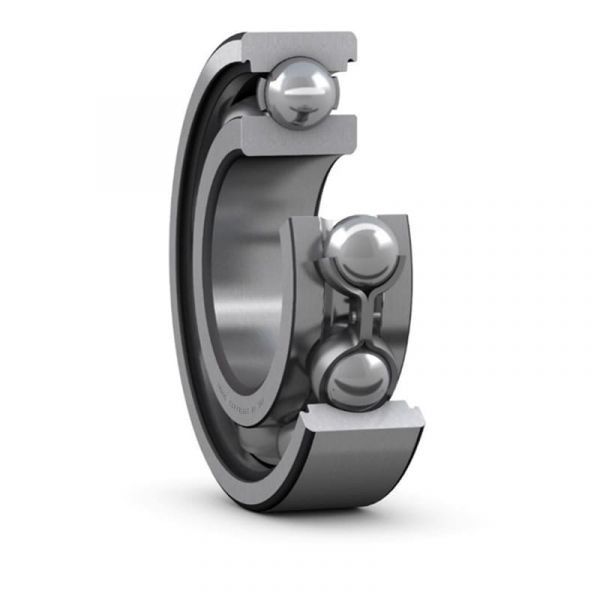

SKF Deep Groove Ball Bearing 6207-RS1 (35MM x 72MM x 17MM)

Part Number : 6207-RS1
₹470.40 ₹398.64 Special Price ₹588.01 Regular Price
Features / Specifications
  • Bore diameter (d) : 35 mm
  • Outside diameter (D) : 72 mm
  • Width (B) : 17mm
  • Shoulder diameter(d1):46.94mm
  • Recess diameter(D2):62.69mm
  • Chamfer dimension(r1,2):min. 1.1mm
  • Reference speed: 20 000 r/min
  • Limiting speed: 6300 r/min
  • Mass bearing: 0.29 kg
Get 2% Extra Discount[On Checkout]
MOQ : 1

Tool Description

min. 42 mm
Diameter of shaft abutment
max. 46.8 mm
Diameter of shaft abutment
max. 65 mm
Diameter of housing abutment
max. 1 mm
Radius of shaft or housing fillet
Basic dynamic load ratingC
27 kN
Basic static load ratingC0
15.3 kN
Fatigue load limitPu
0.655 kN
Limiting speed
6 300 r/min
Minimum load factorkr
Calculation factorf0
Mass bearing
0.29 kg
