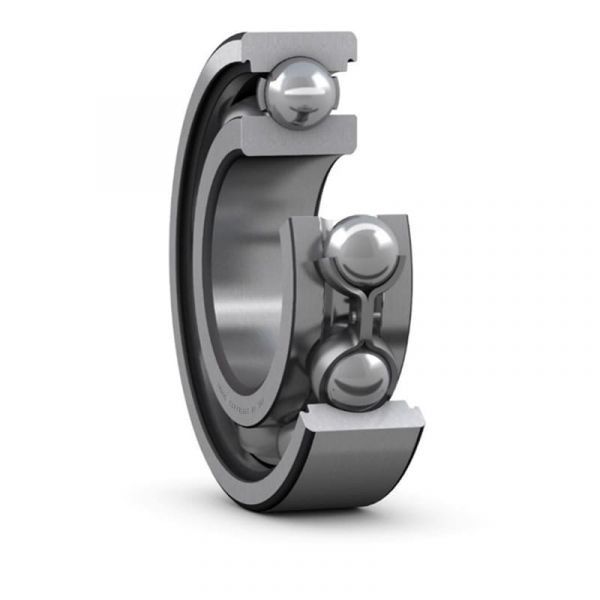

SKF Deep Groove Ball Bearing 6209-Z

By
₹762.00 ₹645.76
d
45 mm
Bore diameter
D
85 mm
Outside diameter
B
19 mm
Width
d1
57.6 mm
Shoulder diameter
D2
75.19 mm
Recess diameter
r1,2
min. 1.1 mm
Chamfer dimension

Tool Description

da
min. 52 mm
Diameter of shaft abutment
da
max. 57.5 mm
Diameter of shaft abutment
Da
max. 78 mm
Diameter of housing abutment
ra
max. 1 mm
Radius of shaft or housing fillet
Basic dynamic load ratingC
35.1 kN
Basic static load ratingC0
21.6 kN
Fatigue load limitPu
0.915 kN
Reference speed
17 000 r/min
Limiting speed
11 000 r/min
Minimum load factorkr
0.025
Calculation factorf0
14.2
Mass bearing
0.42 kg
