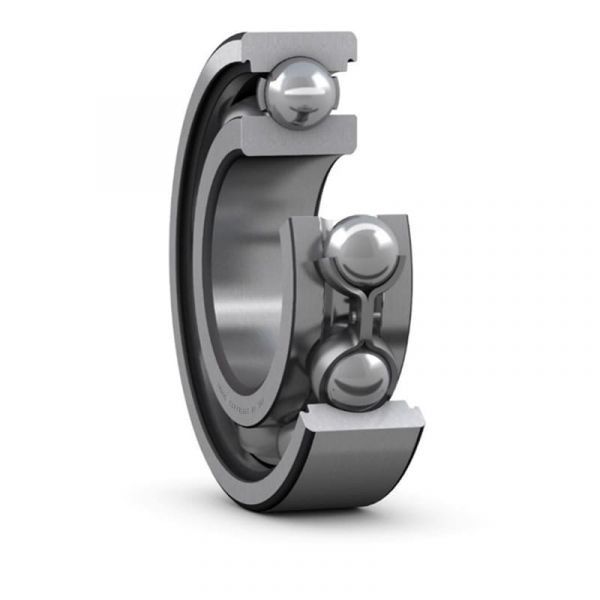

SKF Deep Groove Ball Bearing 6309-2Z (45MM x 100MM x 25MM)
In stock
By
Part Number : 6309-2Z
₹1,311.00
₹1,111.02
Special Price
₹1,748.00
Regular Price
Features / Specifications
- Bore diameter (d) : 45 mm
- Outside diameter (D) : 100 mm
- Width (B) : 25 mm
- Shoulder diameter(d1):62.18 mm
- Recess diameter(D2):86.7mm
- Chamfer dimension(r1,2):min. 1.5 mm
- Reference speed: 15 000 r/min
- Limiting speed: 7500 r/min
- Mass bearing: 0.87 kg
* Required
Tool Description
| da | min. 54 mm | Diameter of shaft abutment |
|---|---|---|
| da | max. 62.1 mm | Diameter of shaft abutment |
| Da | max. 91 mm | Diameter of housing abutment |
| ra | max. 1.5 mm | Radius of shaft or housing fillet |
| Basic dynamic load rating | C | 55.3 kN |
|---|---|---|
| Basic static load rating | C0 | 31.5 kN |
| Fatigue load limit | Pu | 1.34 kN |
| Reference speed | 15 000 r/min | |
| Limiting speed | 7 500 r/min | |
| Minimum load factor | kr | 0.03 |
| Calculation factor | f0 | 13 |
| Mass bearing | 0.87 kg |
