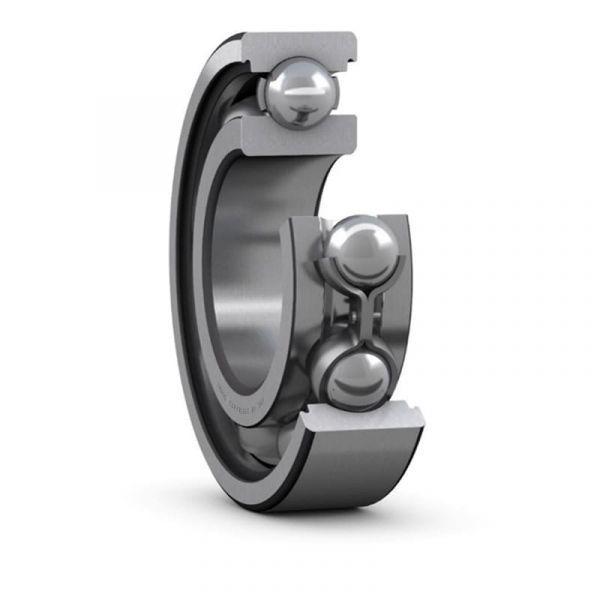

SKF Deep Groove Ball Bearing 6310 NR (50MM x 110MM x 27MM)

Brand
Part Number : 6310 NR
₹1,335.00 ₹1,131.36 Special Price ₹1,779.99 Regular Price
Features / Specifications
  • Bore diameter (d) : 50 mm
  • Outside diameter (D) : 110 mm
  • Width (B) : 27mm
  • Shoulder diameter(d1):68.76 mm
  • Recess diameter(D2):95.2 mm
  • Diameter of snap ring groove(D3):106.81 mm
  • Outside diameter of snap ring(D4):116.6 mm
  • Width of snap ring groove(b):2.7 mm
  • Distance outer ring from side face to snap ring groove(c):3.28mm
  • Width of snap ring(f):2.46 mm
  • Botton radius of snap ring groove(o):max 0.6mm
  • Chamfer dimension(r1,2):min. 2mm
  • Reference speed: 13 000 r/min
  • Limiting speed: 8500 r/min
  • Mass bearing: 1.1 kg
Get 2% Extra Discount[On Checkout]
Minimum Order Qty : 1
