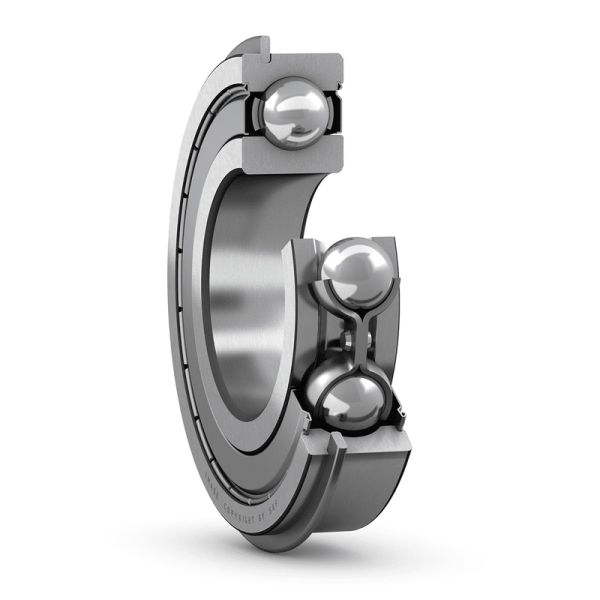

SKF Deep Groove Ball Bearing 6313-2ZNR (65MM x 140MM x 33MM)

By
Part Number : 6313-2ZNR
₹2,643.75 ₹2,240.47 Special Price ₹3,525.00 Regular Price
Features / Specifications
  • Bore diameter (d) : 65 mm
  • Outside diameter (D) : 140 mm
  • Width (B) : 33mm
  • Shoulder diameter(d1):88.35 mm
  • Recess diameter(D2):121.3 mm
  • Diameter of snap ring groove(D3):135.23 mm
  • Outside diameter of snap ring(D4):149.7 mm
  • Width of snap ring groove(b):3.1 mm
  • Distance outer ring from side face to snap ring groove(c):4.9mm
  • Width of snap ring(f):2.82 mm
  • Botton radius of snap ring groove(o):max 0.6mm
  • Chamfer dimension(r1,2):min. 2.1mm
  • Reference speed: 10 000 r/min
  • Limiting speed: 5 300 r/min
  • Mass bearing: 13.2 kg
Get 2% Extra Discount[On Checkout]
MOQ : 1

Tool Description

da
min. 77 mm
Diameter of shaft abutment
da
max. 88.3 mm
Diameter of shaft abutment
Da
max. 128 mm
Diameter of housing abutment
Db
min. 151 mm
Diameter of snap ring recess in the housing
ba
min. 3.5 mm
Width of snap ring recess in the housing
Ca
max. 7.72 mm
Distance from outer ring side face to snap ring back face
ra
max. 2 mm
Radius of shaft or housing fillet
Basic dynamic load rating C
97.5 kN
Basic static load rating C0
60 kN
Fatigue load limit Pu
2.5 kN
Reference speed
10 000 r/min
Limiting speed
5 300 r/min
Minimum load factor kr
0.03
Calculation factor f0
13.2
Mass bearing
2.23 kg
