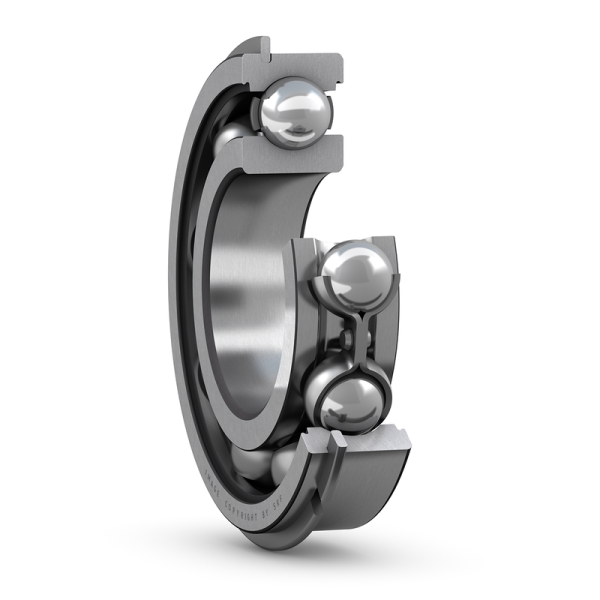

SKF Deep Groove Ball Bearings 6008 NR (40MM x 68MM x 15MM)

By
₹1,399.00 ₹1,185.59
Features / Specifications
  • Bore diameter(d) : 40 mm
  • Outside diameter(D) : 68 mm
  • Width(B) : 15 mm
  • Shoulder diameter(d1):49.25 mm
  • Recess diameter(D2):61.1 mmmm
  • Diameter of snap ring groove(D3):64.82 mm
  • Outside diameter of snap ring(D4):74.6 mm
  • Width of snap ring groove(b):1.9 mm
  • Distance outer ring from side face to snap ring groove(C): 2.49 mm
  • Width of snap ring(f):1.7 mm
  • Bottom radius of snap ring groove(ro):max. 0.6 mm
  • Chamfer dimension(r1,2):min. 1 min
  • Reference Speed:22000 r/min
  • Limiting speed:14000 r/min
  • Mass bearing:0.19kg
