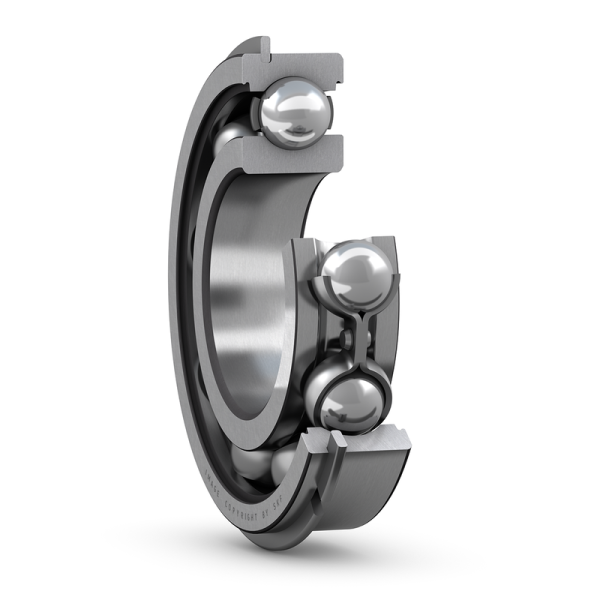

SKF Deep Groove Ball Bearings 6009 NR (45MM x 75MM x 16MM)

By
Part Number : 6009 NR
₹1,960.00 ₹1,661.02
Features / Specifications
  • Bore diameter(d): 45 mm
  • Outside diameter(D): 75 mm
  • Width(B): 16 mm
  • Shoulder diameter(d1):54.75 mm
  • Recess diameter(D2):67.8 mm
  • Diameter of snap ring groove(D3):71.83 mm
  • Outside diameter of snap ring(D4):81.6 mm
  • Width of snap ring groove(b):1.9 mm
  • Distance outer ring form side face to face snap ring groove(C):2.49 mm
  • Width of snap ring(f):1.7 mm
  • Bottom Radius of snap ring groove(ro):max. 0.6 mm
  • Chamfer dimension(r1,2):min. 1 min
  • Reference speed:20000 r/min
  • Limiting speed12000 r/min
  • Mass bearing:0.25kg
