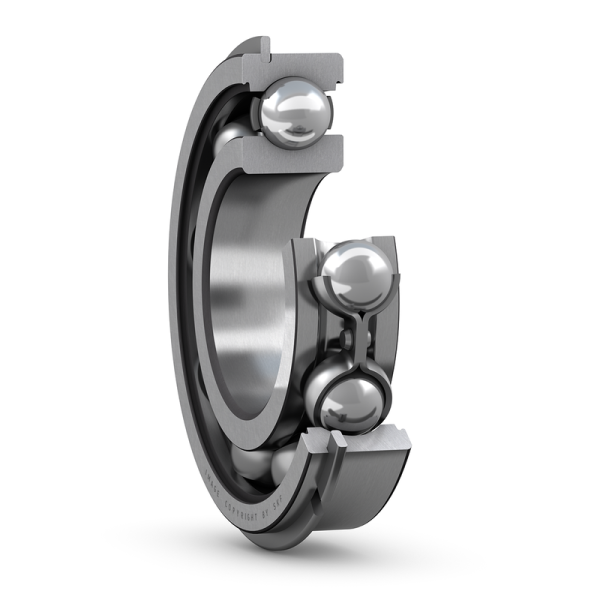

SKF Deep Groove Ball Bearings 6206 NR (30MM x 62MM x 16MM)
In stock
By
Part Number : 6206 NR
₹945.75
₹801.48
Special Price
₹1,261.00
Regular Price
Features / Specifications
- Bore diameter(d): 30 mm
- Outside diameter(D): 62 mm
- Width(B): 16 mm
- Shoulder diameter(d1):40.36 mm
- Recess diameter(D2):54.06 mm
- Diameter of snap ring groove(D3):59.61 mm
- Outside diameter of snap ring(D3):67.7 mm
- Width of snap ring groove(b):1.9 mm
- Distance outer ring from side face to snap ring groove(C):3.28 mm
- Width of snap ring(r):1.7 mm
- Bottom radius of snap ring groove(ro)max. 0.6 mm
- Chamfer dimension(r1,2):min. 1 mm
- Reference speed:24000 r/min
- Limiting speed:15000 r/min
- Mass bearing:0.21kg
