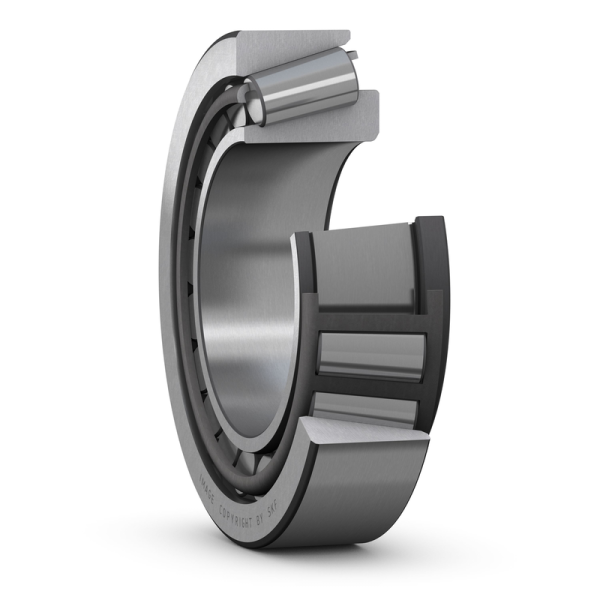

SKF Tapered Roller Bearings 30305 (25MM x 62MM x 18.25MM)

By
₹1,158.00 ₹981.36
Features / Specifications
  • Bore diameter(d) : 25 mm
  • Outside diameter(D) : 62 mm
  • Total bearing Width(T) : 18.25 mm
  • Inner Ring Shoulder diameter(d1):41.5 mm
  • Width Inner Ring(B):17 mm
  • Width Outer Ring(C):15 mm
  • Corner Radius Inner Ring(r1,2):min 1.5 mm
  • Corner Radius Outer Ring(r3,4):min 1.5 mm
  • Distance Pressure Point(a):12.779 mm
  • Reference Speed:9 500 r/min
  • Limiting Speed:12 000 r/min
  • Mass Bearing:0.26 kg
