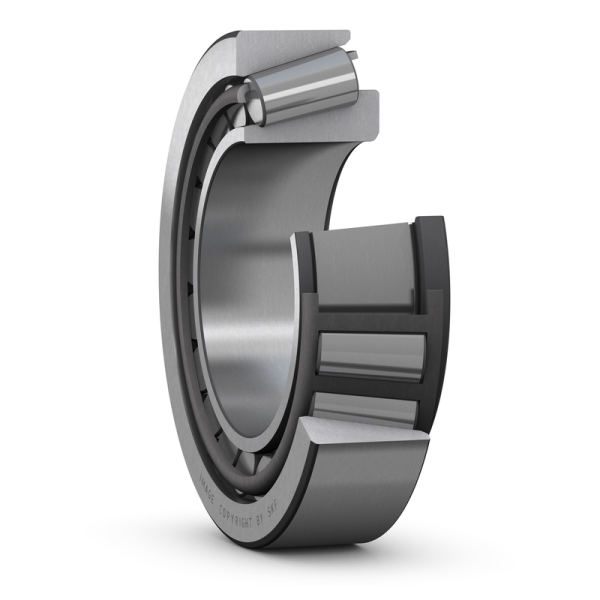

SKF Tapered Roller Bearings LM 11949/910 (19.305MM x 45.237MM x 15.494MM)
In stock
By
Part Number : LM 11949/910
₹473.25
₹401.06
Special Price
₹631.01
Regular Price
Features / Specifications
- Bore diameter(d): 19.05 mm
- Outside diameter(D): 45.237 mm
- Total bearing Width(T): 15.494 mm
- Inner ring shoulder diameter(d1):31.4 mm
- Width inner ring(B):16.637 mm
- Width outer ring(C):12.065 mm
- Corner radius inner ring(r1,2):min. 1.3 mm
- Corner radius outer ring(r3,4):min. 1.3 mm
- Distance pressure point(a):9.825 mm
- Reference speed:13000 r/min
- Limiting speed:16000 r/min
- Mass bearing:0.12kg
