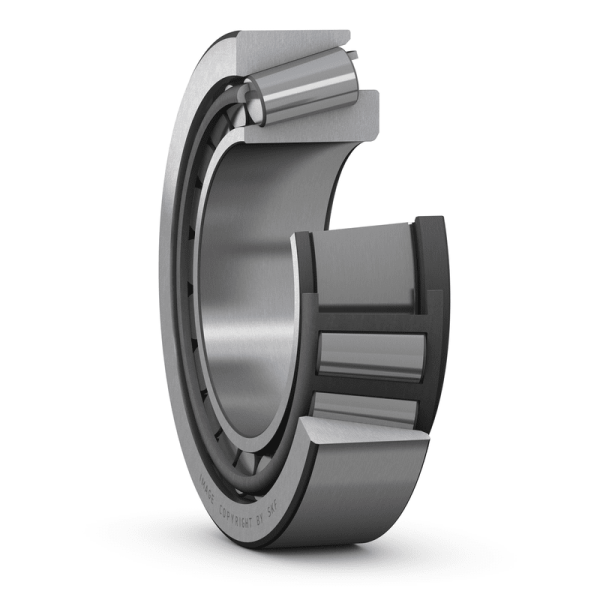

SKF Tapered Roller Bearing 11590/11520 (15.875MM x 42.862MM x 14.288MM)
In stock
By
Part Number : 11590/11520
₹447.20
₹378.98
Special Price
₹559.00
Regular Price
Features / Specifications
- Bore diameter (d) : 15.875mm
- Outside diameter (D) : 42.862mm
- Total bearing width(T): 14.288mm
- Inner ring shoulder diameter(d1): 31.1mm
- Width inner ring(B): 14.288mm
- Width outer ring(C): 9.525mm
- Corner radius inner ring(r1,2): min 1.5mm
- Corner radius outer ring(r3,4): min 1.5mm
- Distance pressure point(a): 12.624mm
- Reference speed: 13 000 r/min
- Limiting speed: 17 000 r/min
- Mass bearing: 0.1 kg
* Required
Tool Description
| da | max. 23 mm | Abutment diameter shaft |
|---|---|---|
| db | min. 23.5 mm | Abutment diameter shaft |
| Da | min. 32 mm | Abutment diameter housing |
| Da | max. 36.5 mm | Abutment diameter housing |
| Db | min. 38 mm | Abutment diameter housing |
| Ca | min. 2 mm | Abutment housing - axial space at the large side face/ both sides of the outer ring |
| Cb | min. 4.5 mm | Abutment housing - axial space at the small side face/ both sides of the outer ring |
| ra | max. 1.5 mm | Fillet radius |
| rb | max. 1.5 mm | Fillet radius |
| Basic dynamic load rating | C | 21.5 kN |
|---|---|---|
| Basic static load rating | C0 | 17.6 kN |
| Fatigue load limit | Pu | 1.8 kN |
| Reference speed | 13 000 r/min | |
| Limiting speed | 17 000 r/min | |
| Calculation factor | e | 0.72 |
| Calculation factor | Y | 0.84 |
| Calculation factor | Y0 | 0.45 |
| Mass bearing | 0.1 kg |
