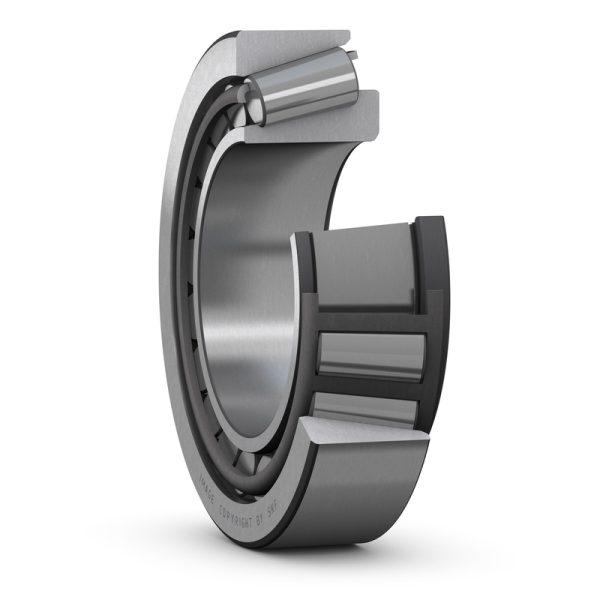

SKF Tapered Roller Bearing 567/563 (73.025MM x 127MM x 36.512MM)
In stock
By
Part Number : 567/563
₹1,482.75
₹1,256.57
Special Price
₹1,977.00
Regular Price
Features / Specifications
- Bore diameter (d) : 73.025mm
- Outside diameter (D) : 127mm
- Total bearing width(T): 36.512mm
- Inner ring shoulder diameter(d1): 97.6mm
- Width inner ring(B): 36.17mm
- Width outer ring(C): 28.575mm
- Corner radius inner ring(r1,2): 3.5mm
- Corner radius outer ring(r3,4): min 3.3mm
- Distance pressure point(a): 28.152mm
- Reference speed: 4300 r/min
- Limiting speed: 5000 r/min
- Mass bearing: 1.87 kg
* Required
Tool Description
| da | max. 83 mm | Abutment diameter shaft |
|---|---|---|
| db | min. 86.5 mm | Abutment diameter shaft |
| Da | min. 109 mm | Abutment diameter housing |
| Da | max. 115 mm | Abutment diameter housing |
| Db | min. 119 mm | Abutment diameter housing |
| Ca | min. 5 mm | Abutment housing - axial space at the large side face/ both sides of the outer ring |
| Cb | min. 7.5 mm | Abutment housing - axial space at the small side face/ both sides of the outer ring |
| ra | max. 3.5 mm | Fillet radius |
| rb | max. 3.3 mm | Fillet radius |
| Basic dynamic load rating | C | 217 kN |
|---|---|---|
| Basic static load rating | C0 | 255 kN |
| Fatigue load limit | Pu | 29 kN |
| Reference speed | 4 300 r/min | |
| Limiting speed | 5 000 r/min | |
| Calculation factor | e | 0.37 |
| Calculation factor | Y | 1.6 |
| Calculation factor | Y0 | 0.9 |
| Mass bearing | 1.87 kg |
